RFID Chip Range Explained: Technical Specifications and Performance Expectations

You can usually read most RFID chips from a few centimeters to 15 meters, depending on the RFID chip range of the system you use. Many important factors affect how far an RFID chip can be read. These include the antenna type, tag position, reader power, cable quality, and the area around the chip. MarktraceRFID provides smart solutions to optimize these elements, ensuring that the chips perform reliably every time.

Key Takeaways

• RFID chip range can be very short or very long. It can go from a few centimeters up to 15 meters. The range depends on the system and how it is set up.

• Many things can change how far RFID can read. These include the antenna type, where the tag is placed, how strong the reader is, and the environment around it.

• There are different types of RFID. Each type has its own range. For example, UHF RFID works well for shipping. It can read tags from farther away.

• Active RFID systems can read tags from very far away. They can work from hundreds of feet away. This makes them good for big spaces.

• To make RFID work better, pick the right tag. Put the tag in a good spot. Use strong antennas to help the system.

• Things like metal and water can make RFID range shorter. Think about these things when you set up your system.

• Test your RFID system often. This helps you find and fix any problems with range.

• Talk to experts to help you pick the best RFID system. Make sure it fits your needs and your space.

RFID Chip Range Overview

RFID chip range is how far a tag can talk to a reader. This distance is important for tracking things or checking inventory. If you work in shipping or asset tracking, you need the right range. It helps you cover big spaces and keep good records. MarktraceRFID gives you choices that fit what you need. You can pick long-range or strong performance in hard places.

Typical RFID Read Distances

Different RFID types have different ranges. The table below shows how far each type can read:

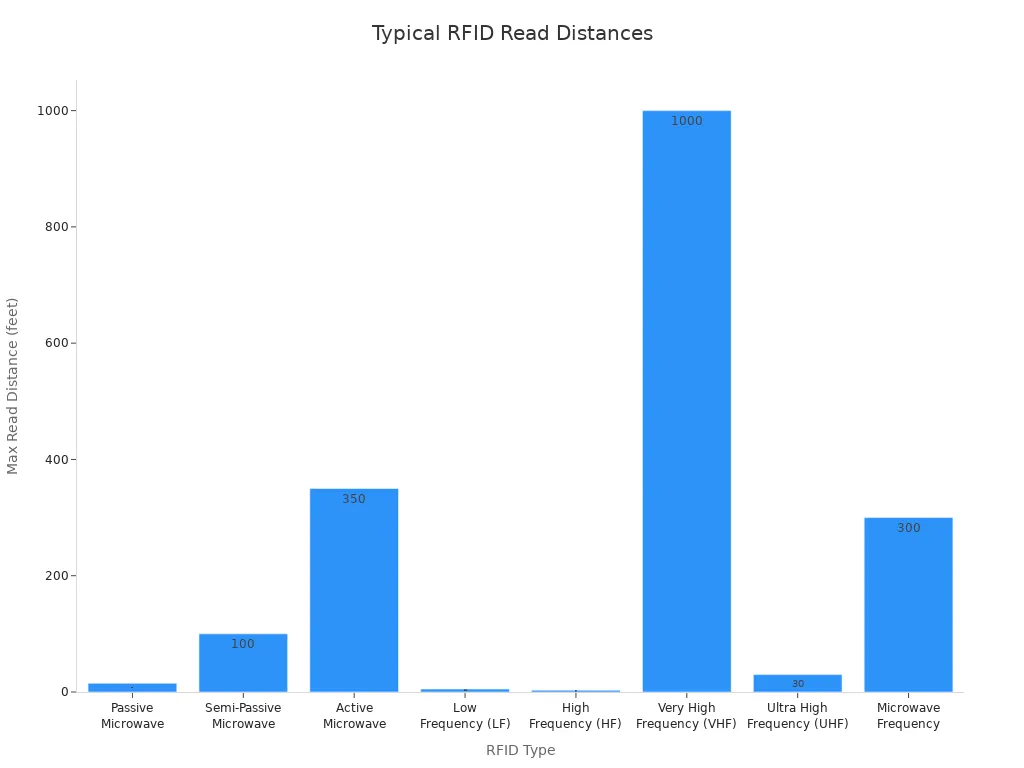

You can see the range differences in the chart below:

Pick the RFID type that works best for your job. UHF RFID is good for shipping because it reads tags far away. HF RFID is better for close-up uses like door access.

Maximum Range for RFID Chips

You might ask how far RFID chips can go. The answer depends on the type and setup. Here are some examples:

• Long-range readers in warehouses can reach 8–15 meters.

• Some special models can go up to 20 meters.

• HF readers reach about 18 inches.

• Active RFID systems can read tags from 1,500 feet away.

• Passive UHF handheld readers reach about 10 feet, but some can go up to 600 feet.

If you need to cover a big area, active RFID gives the longest range. MarktraceRFID lets you change the range to fit your project.

Factors Influencing RFID Chip Range

Many things change how far you can read an RFID chip. Pay attention to these to get the best results:

Tip: You can make your RFID chip range better by picking the right tag, placing tags in smart spots, and using strong antennas. MarktraceRFID helps you set these up for your space.

MarktraceRFID gives you choices for long-range, low power use, and strong work in tough places. You can trust their systems to work well, even with interference or very hot or cold weather.

Types of RFID Systems

You should know the main types of rfid systems before picking one for your business. Each type uses its own frequency and has a different read range. These systems work in many industries and follow certain rules.

Passive RFID Range (LF, HF, UHF)

Passive rfid systems do not have batteries. The reader gives power to the tag and reads its data. The range changes with the frequency and where you use it.

LF Range

Low-frequency (LF) rfid works at 125 kHz. It can read up to 10 cm away. LF tags are good for tracking animals and letting people in doors. These systems use ISO/IEC 18000-2 rules.

HF Range

High-frequency (HF) rfid uses 13.56 MHz. It can read up to 30 cm away. HF tags are used in libraries and smart cards. ISO 15693 is the main rule for HF systems.

UHF Range

Ultra-high-frequency (UHF) rfid works from 865 MHz to 928 MHz. UHF tags can be read up to 6 meters away. These systems are used in shipping and keeping track of items. EPC Gen 2 (ISO/IEC 18000-63) is the rule for UHF rfid.

Here is a table that shows the usual read ranges for passive rfid systems:

Note: In Europe, rfid systems must follow ETSI EN 300 220 and EN 302 208. ERO 70 03 sets rules for safe use.

Active RFID and Maximum Range

Active rfid tags are used when you need to track things far away. These tags have batteries and send signals farther.

Battery-Assisted Passive RFID

Battery-assisted passive tags have a small battery to help the signal. They can be read farther than normal passive tags, but still need the reader to wake them up.

Fully Active RFID

Fully active rfid tags send signals by themselves. They can be read from hundreds of feet away. In factories, UHF active rfid tags work from 400 MHz to 3 GHz. These systems can reach 30 meters or even more than 100 meters. These tags are great for tracking things in big places.

• You can track cars in parking lots.

• You can watch tools in warehouses.

• You can check items in outdoor yards.

Microwave RFID Range

Microwave rfid systems use higher frequencies and can read farther. You can track things over many meters or even hundreds of meters. These systems are good for fast-moving things, like toll booths or sorting packages.

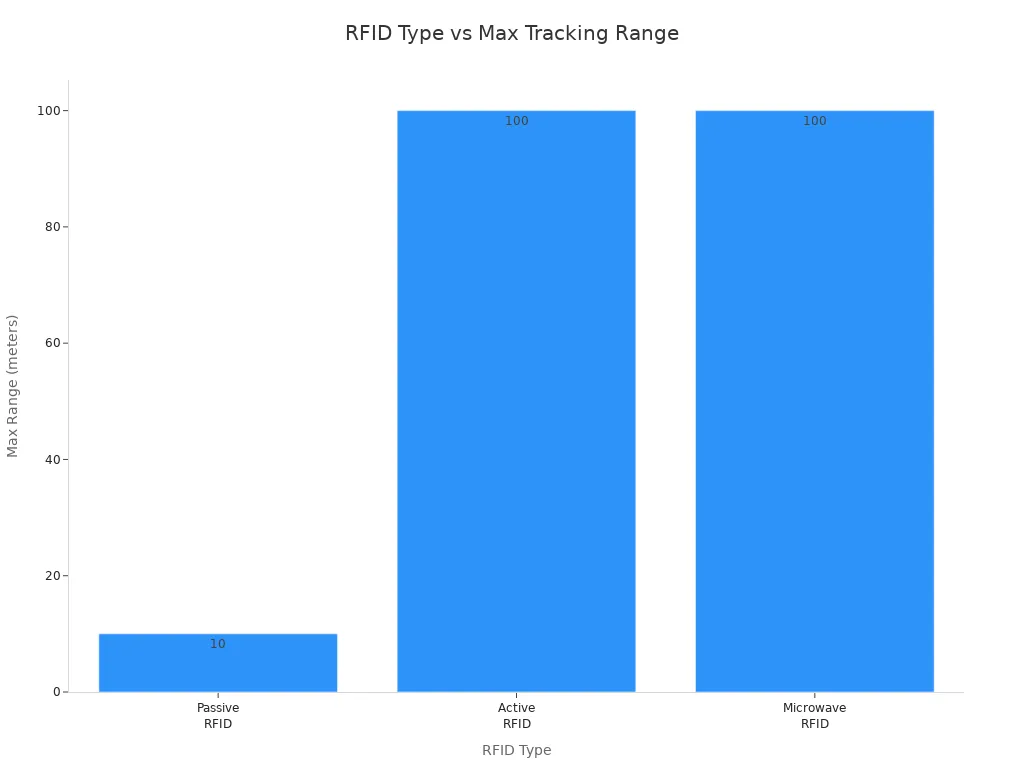

Here is a chart that shows how far passive, active, and microwave rfid systems can track:

Tip: Pick the rfid system that fits your job and follows the rules in your area. MarktraceRFID has choices that meet world standards and work well.

Technical Specs for RFID Range

Tag Size and Material

You must think about the size and material of your RFID tags. These things change how far you can read the tag. Bigger tags have bigger antennas. This helps the signal go farther. Smaller tags fit on tiny things, but they do not read as far.

The stuff around the tag matters too. Some things, like metal or water, block the signal. For example:

• Metal can mess up the power between the tag and reader.

• Water, even in people, soaks up radio waves and makes the range shorter.

• The coating on the tag can also change how well the signal moves.

Always think about where you will put your tags. If you need to tag hard places, MarktraceRFID has special tags that work well, even in tough spots.

Antenna Design

Antenna design is very important for RFID chip range. The right antenna helps your system work better. Different antennas do different jobs. The table below shows how each one works:

Pick the antenna that fits your job. If you track things on a conveyor, use a directional antenna. If you need to read tags at many angles, use a circular polarized antenna. MarktraceRFID can help you pick and change antennas for your needs.

Tip: Make sure your antenna matches your RFID frequency. Set it up right to get the best range.

Reader Power and Sensitivity

The reader is like the heart of your RFID system. Its power and sensitivity decide how far it can read tags. You can change the power on most readers, from 0 dBm to 27–31.5 dBm. More power lets you read tags farther away. But you should watch out for other devices that might cause problems.

Reader sensitivity shows how well it hears weak signals. Higher sensitivity means it can read tags from farther away, even if the signal is weak. The table below explains these things:

You should balance power and sensitivity for the best results. MarktraceRFID has readers that let you change power and have high sensitivity. This helps your system work well anywhere, like in a busy warehouse or outside.

Environmental Impact

You need to think about the environment when setting up your RFID system. Outdoor and industrial places can make RFID chip range shorter. If you use RFID near big machines or in bad weather, it might not work as well.

• Electromagnetic Interference (EMI) can mess up signals. Machines or other devices using the same frequencies can cause trouble.

• Physical Obstacles like metal and water stop radio waves. Metal can bounce or soak up signals. Water soaks up radio waves and makes the range shorter.

• Temperature Extremes can hurt RFID chips. Cold can freeze parts. Heat can bend cases and change how tags work.

• Rain and Humidity can make the read range 20–50% shorter during heavy rain. Water inside readers that are not sealed can also cause problems.

• Signal Distortion happens near big metal things or liquids. These spots can make dead zones where readers cannot find tags.

You should always look at your site for these problems. If you work in a warehouse, factory, or outside, you need RFID tags and readers made for tough places. MarktraceRFID has strong devices that keep working in very hot, cold, or wet places with lots of interference. You can trust their products to give good reads, even when things change.

Tip: Try to keep tags away from metal and water. Use sealed readers and tags in wet or damp places. Pick RFID systems made for your area to get the best results.

Performance Expectations

Real-World RFID Range

You might wonder how far RFID works outside labs. In real life, RFID chip range changes with your space, tag type, and reader setup. Passive tags work best within a few meters. Active tags can go much farther. In warehouses, you may get 6 to 15 meters. In outdoor yards, active tags reach up to 100 meters. Always test your system where you use it. Metal racks, water, and interference can change results.

Here are some benchmarks to help you check RFID performance:

Tip: Check these benchmarks before you use RFID. This helps you set good goals and avoid problems.

Industry Use Cases

RFID is used in many industries. Each one has its own needs and problems. In logistics, you track pallets and shipments over long distances. In healthcare, you watch equipment and patient tags in busy hospitals. Schools use RFID for student attendance and access control. Farms use RFID to track animals and manage gear.

You should know about common problems with RFID:

You can fix many problems by picking the right system and getting help from experts. MarktraceRFID gives support and advice to help you get good results.

MarktraceRFID Deployment Examples

You want to see RFID working in real life. MarktraceRFID has done projects in more than 30 countries. In India, their systems track thousands of things in big logistics centers. In Southeast Asia, schools use MarktraceRFID for quick and correct student check-ins. Farms use strong tags to watch animals, even in bad weather.

MarktraceRFID gives you more than just products. Their team helps you before you buy, sets up your system, and gives support after. You can change your solution to fit your needs. You can pick long-range tracking or strong reads in hard places. MarktraceRFID has a good record, so you can trust their systems for your business.

Note: Always match your RFID to your job and space. MarktraceRFID helps you with expert advice and flexible choices.

Optimizing RFID Range

Choosing the Right RFID System

You should pick an rfid system that fits your business. First, think about how far you need to read tags. If your warehouse is big, pick a system with a long read range. Choose the frequency that works for your job. LF, HF, and UHF are good for different places and things. Check where you will use the tags. Dust, water, and metal can change how well tags work. Pick tags that are the right size and shape for your stuff. Make sure the tag material and where you put it help the signal stay strong.

Here are the top things to think about when picking an rfid system:

1. How far you need to read tags.

2. The best frequency for your space.

3. Things like heat and wetness in your area.

4. Tag size and shape for your items.

5. If the tag and surface work well together.

6. What kind of tag you need: passive, active, or semi-passive.

7. If the system follows the right rules.

Tip: Ask experts for help. They can match your warehouse, items, and budget to the best rfid system.

Best Practices for Maximum Range

You can get the best read range by using smart steps. Start with a site check to find good spots for readers and antennas. Put antennas where they cover the most space and miss things that block signals. Use passive tags if you want to track lots of items and save money. For expensive things, active tags can read farther. Fixed readers are good for scanning at doors or loading docks.

• Do a site check to find the best places for readers and antennas.

• Use passive tags for tracking many things; pick active tags for long distances.

• Connect your rfid system to warehouse software for easy work.

• Check every part to make sure it lasts and works well.

• Think about how big your space is and what you store.

Note: Strong tags and antennas in good spots help your system work well in tough places.

Troubleshooting Range Issues

Sometimes, you might have trouble reading tags far away. Other devices or metal can block signals and make dead spots. Water can soak up signals, so use waterproof tags and put readers higher in wet places. Wi-Fi routers can mess with rfid signals. Use frequency hopping to fix this. Make sure your power supply is steady. Keep reader cables short so you do not lose signal strength.

• Look for things that block or mess up signals.

• Move antennas to get better coverage.

• Use special tags for metal or move antennas away from metal.

• Use waterproof tags and put readers up high in wet spots.

• Test for signal problems and keep away from things like bad power or home electronics.

• Use short cables between readers and antennas to keep signals strong.

Tip: Test your rfid system often and move things if needed. This helps you keep your read range working well.

RFID vs Other Wireless Technologies

When you look at rfid and other wireless tech, you see they are different. They do not all work the same way. Each one is good for certain jobs. You need to know which one fits your project best.

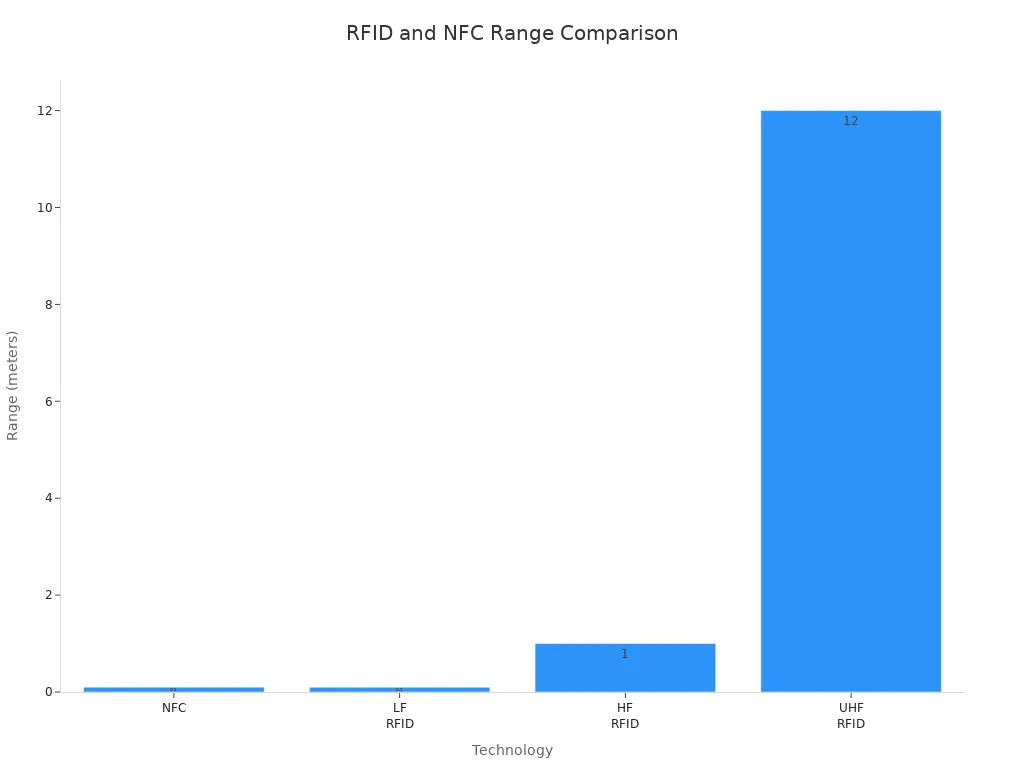

RFID vs NFC

NFC means Near Field Communication. People use it for safe payments and getting into places. NFC only works when things are very close, about 10 centimeters. RFID can work from farther away. LF RFID is like NFC and works up to 10 centimeters. HF RFID can reach up to 1 meter. UHF RFID can go as far as 12 meters. RFID gives you more choices if you need to track things that are not close.

• NFC is best for safe payments and letting people in.

• UHF RFID is great for tracking things in big places.

• NFC’s short range keeps your data safe.

• RFID’s long range helps you find things from far away.

RFID vs Bluetooth

Bluetooth lets devices talk to each other without wires. Bluetooth Low Energy, or BLE, is used to track things and people. BLE can reach up to 1 kilometer, but walls and other things can make it weaker. RFID comes in two main types: passive and active. Passive RFID works only a few meters away. Active RFID can reach up to 100 meters. RFID is better for short distances. Bluetooth is good for longer distances, but it can have problems with things in the way.

Tip: Pick Bluetooth if you need to track things far away in open places. Use RFID if you want good reads in busy or crowded spots.

RFID vs Wi-Fi

Wi-Fi is used in homes and offices for internet and sharing data. In tracking, Wi-Fi RTLS uses tags with Wi-Fi radios. These tags send signals to access points. The system finds where things are by checking signal time and strength. Passive RFID tags only work a few meters away. Active RFID and RTLS can reach 100 meters or more.

• Passive RFID is good for tracking things close by.

• Active RFID and RTLS can track things in big areas.

• Wi-Fi RTLS can find things more exactly using special timing.

• You can use your Wi-Fi network to track things, so it is easy to start.

Note: If you want to track things in a big building, Wi-Fi RTLS can use your Wi-Fi. For tracking in warehouses or factories, RFID gives you strong and steady results.

You have to think about a few things to get the best rfid chip range.

• Chip sensitivity and impedance change with frequency, protocol, and chip mode.

• Extra features in rfid sensors can affect how they work.

• These things decide how far and how well your system works.

MarktraceRFID gives you choices that match what you need. The table below shows how their systems help you do your work better:

You get good results and strong help when you pick the right rfid system.

FAQ

How far can you read an RFID chip?

Most RFID chips can be read from a few centimeters to 15 meters. The distance changes with the chip type, reader power, and where you use it.

What affects RFID chip range the most?

Antenna design, tag placement, and reader power matter a lot. Metal or water nearby can make the range shorter. You should look at these things before you set up your system.

Can you use RFID outdoors?

RFID works outside. Pick tough tags and readers made for weather and interference. MarktraceRFID has options for outdoor places.

Do RFID chips work near metal?

RFID chips do work near metal, but metal can make the range less. Use special tags for metal surfaces to help them work better.

How do you increase RFID read range?

You can get more range by using stronger antennas and changing reader power. Put tags away from metal or water. Try different setups to see what works best.

What is the difference between passive and active RFID?

Passive RFID tags have no batteries and work close up. Active RFID tags have batteries and send signals farther. They are good for big spaces.

Is RFID safe for people and animals?

RFID uses weak radio waves. It is safe for people and animals. MarktraceRFID tags follow safety rules from around the world.
