School Attendance Management Solution (Case Studies of Primary and Secondary Schools in India)
1. Project Background
Most schools in India still rely on manual attendance taking or card-based check-in, which is inefficient, error-prone, and lacks real-time monitoring. This solution leverages Marktrace RFID 2.4GHz Active RFID technology to automate and digitize attendance for students and staff, enabling accurate tracking, real-time parent notifications, and data reporting.
2. System Overview
System Components
Component | Description |
RFID Tags | Marktrace RFID 2.4GHz Active RFID tags worn by students and staff (as ID cards or badges). |
RFID Readers | Marktrace RFID fixed readers installed at key locations such as school gates, School bus and classroom entrances. |
Attendance Platform (Developed by the customer) | Centralized system (cloud or local server) for data management and reporting. |
Mobile App / SMS Gateway (Developed by the customer) | Sends real-time alerts to parents regarding student check-in/out status. |
3. System Architecture
4. Key Features
4.1 Student Attendance
Automatic detection when students enter or leave the campus
Real-time updates to the attendance platform
Daily, monthly, and term-wise reports
Absent alerts for missing check-ins by defined times
4.2 Staff Attendance
Automatic attendance for teachers and staff
Support for tracking late arrivals, early leaves, and absences
Customizable schedules for part-time or substitute staff
4.3 Parent Notification
App push notifications or SMS alerts when students enter or exit the campus
Alert if a student does not arrive within defined school hours
4.4 Reporting and Analytics
Attendance statistics per class, grade, or group
Exportable Excel/PDF reports
Attendance heatmaps or charts for management insight
5. Marktrace RFID Device Selection
5.1 RFID Tag: Marktrace RFID HX607
Frequency: 2.4GHz
Type: Active RFID
Battery Life: Up to 3 years
Reading Distance: 30–50 meters (open area)

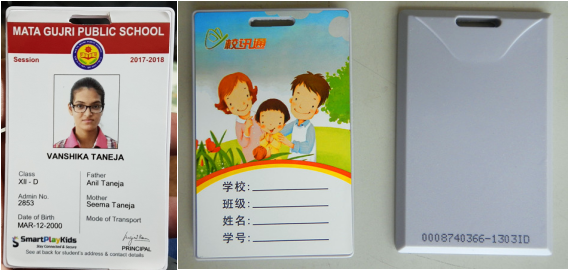

Form: ID Card, waterproof, drop-resistant
Function: Sends signal at regular intervals with unique ID
5.2 RFID Reader: Marktrace RFID MR7901P/MR7902
Reading Range: 200-400 meters
Communication: TCP/IP & 4G
Installation: Wall-mounted or ceiling-mounted
IP Level: IP65
6. Deployment Plan
Reader Deployment Recommendations
Location | Quantity | Installation Method |

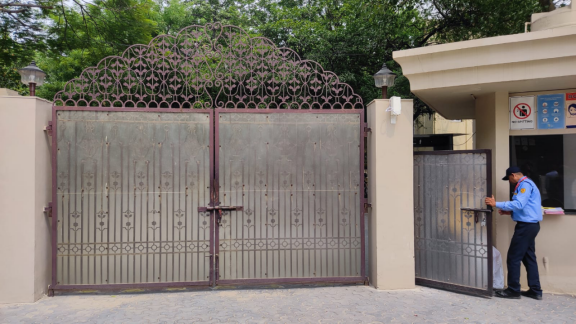

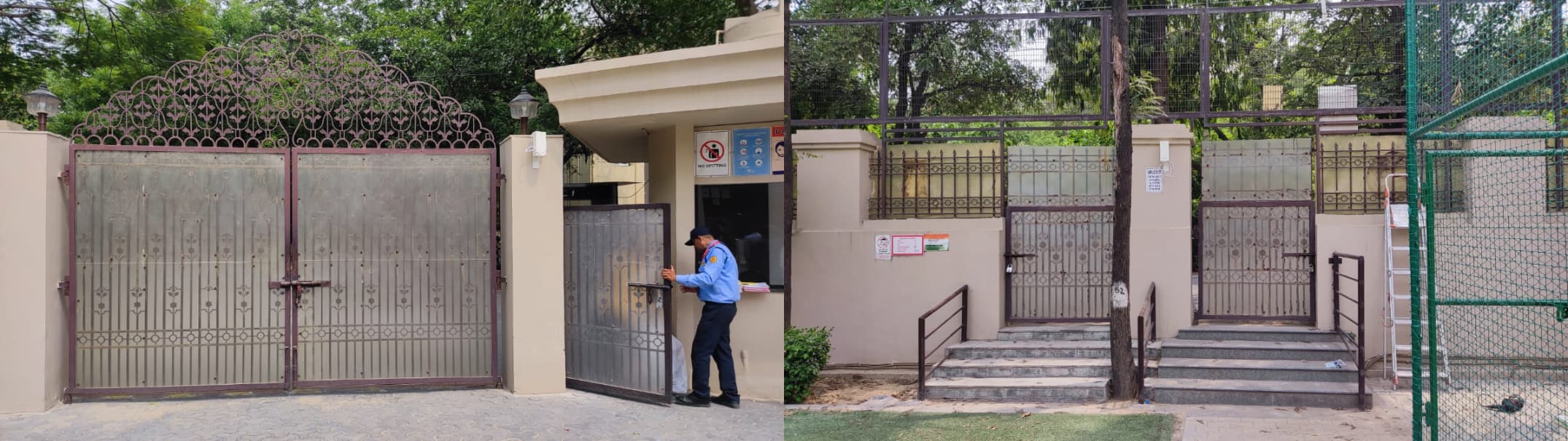

Main Entrance | 1–2 units | Wall-mounted |

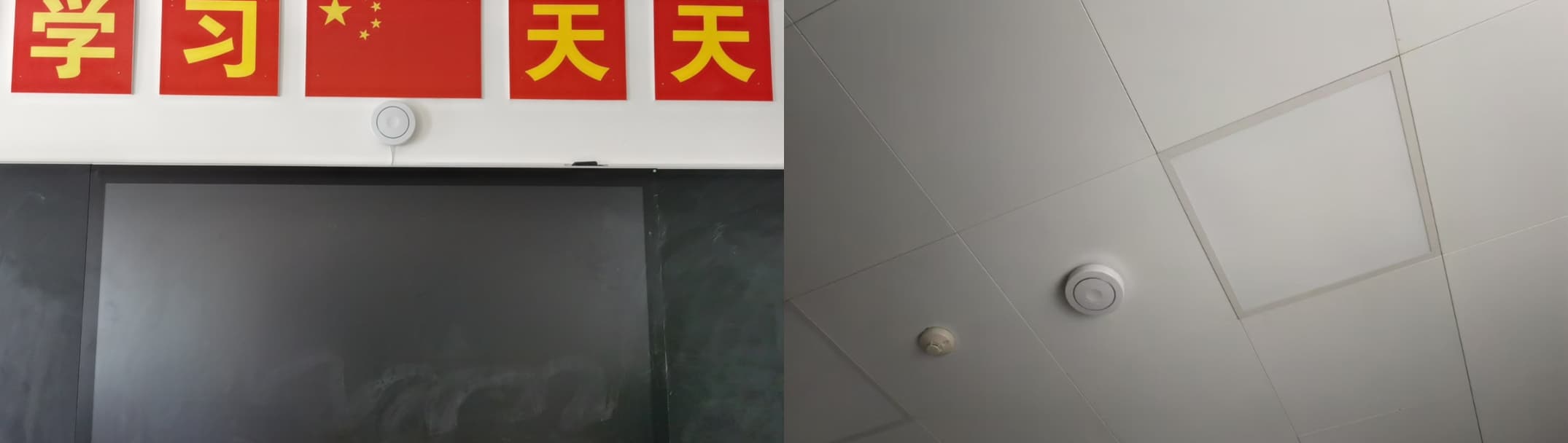

Classroom Areas | 1 per classroom | Corridor installation |
Staircases / Corridors | 1 per floor | Ceiling-mounted |

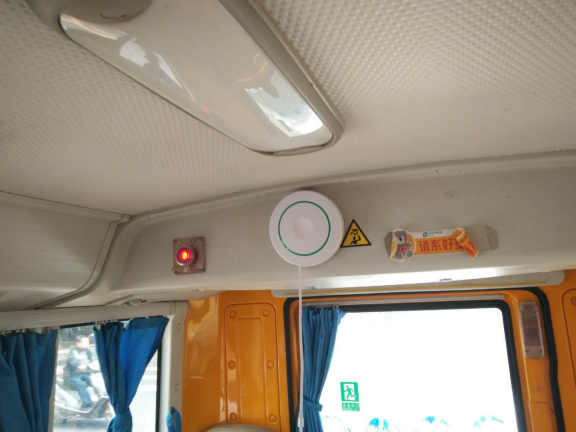

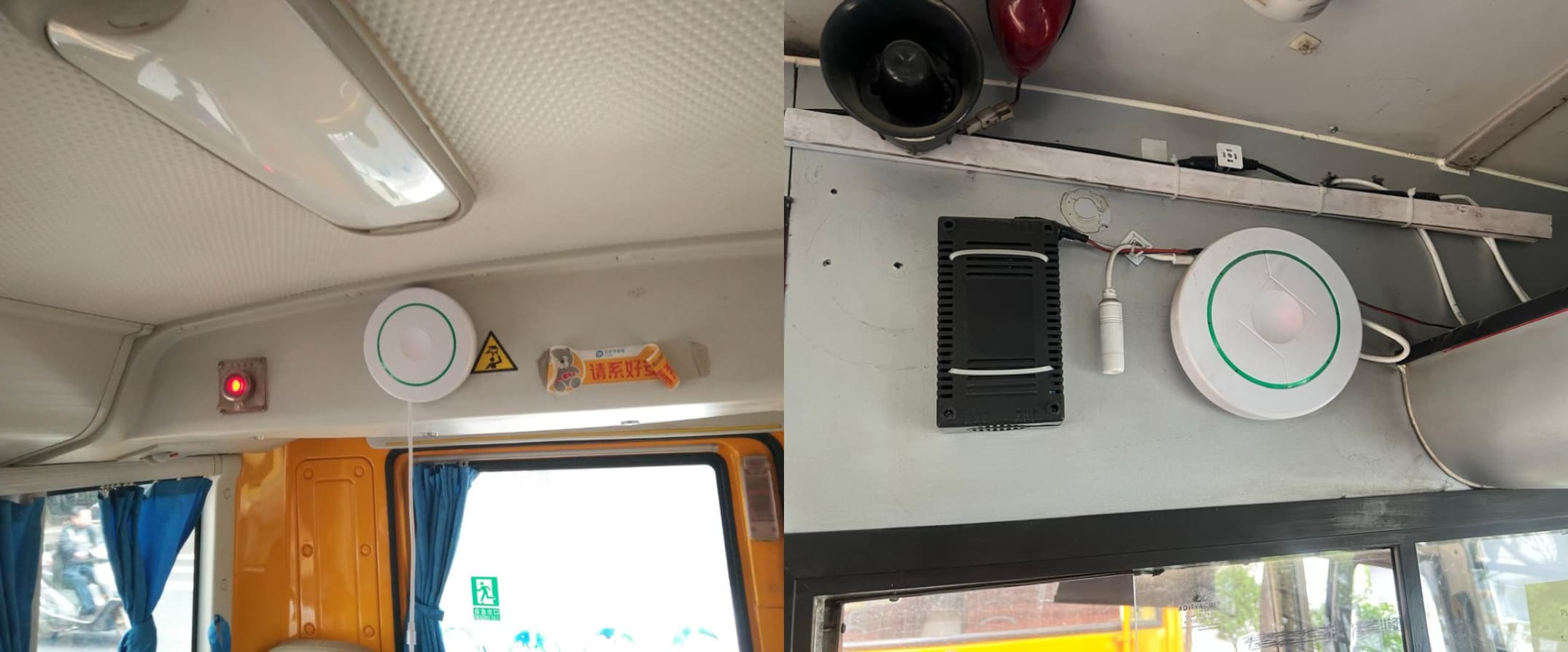

School Buses (optional) | 1 per bus | Vehicle-mounted |
7. Benefits
Contactless & Efficient: No manual check-ins needed
Accurate & Real-time: Prevents fake attendance or manual errors
Safe & Transparent: Parents notified instantly of student entry/exit
Analytics-Driven: Enables data-based decisions by school administrators
Scalable: Easily expandable to integrate with library, cafeteria, or bus systems
8. Target Schools
Private and public schools
English-medium and vernacular schools
Schools with boarding or transportation services
9. Conclusion
This 2.4GHz RFID attendance solution using Marktrace RFID technology ensures a secure, contactless, and intelligent attendance management system for schools in India. The solution not only improves operational efficiency but also fosters better communication between school and parents, ultimately enhancing student safety and accountability.
