RFID UHF Long Range Integrated Reader
Model NO：
MR6211E
Key Features MR6211E UHF RFID Reader base on new generation reader technology platform development which is combine UHF RFID advanced technology and many years reader application base experience. This reader is more stable and can use in various applications
High performance, easy installation
Built-in 12 dBi antenna ensures long range reading
Provides all kinds of communication interfaces
Waterproof and sunshine defending, ideal for outdoor applications
Parameters | Items | Parameter |
| Frequency | US（902～928MHz）, China（920～925MHz）, EU（865～868MHz）, other frequency select. E. g. Malaysia ISM919-923MHz, Philippines ISM918-920MHz |
| Supported RFID Tag Protocols | ISO18000-6C, EPC Class1 Gen2 |
| Reader Protocols | MarktraceRFID reader protocol |
| RF Power | 0～30dBm adjustable |
| Sensitivity | -80dBm |
| Antenna | 12dBi linear polarization antenna |
| Reading Range | Up to 12 m (adjustable on Testing Demo software) |
| Processor | ARM CORTEX M3 100M CPU |
| Data Interface | 100M Ethernet Interface (TCP/IP) RS232,RS485, Wiegand 26/34 1 set input and 1 set output（TTL),1 set relay |
| Software SDK | C++ |
| Power Supply | DC +9V～+15V |
| Indicators | Buzzer |
| Working Temp. | -20～60℃ |
| Weight | 2kg |
| Dimensions | 440*440*68.6mm |
| Certifications | FCC, CE |
| Color | Gray |
| Housing | ABS |
| Ingress Protection | IP65 |
Applications

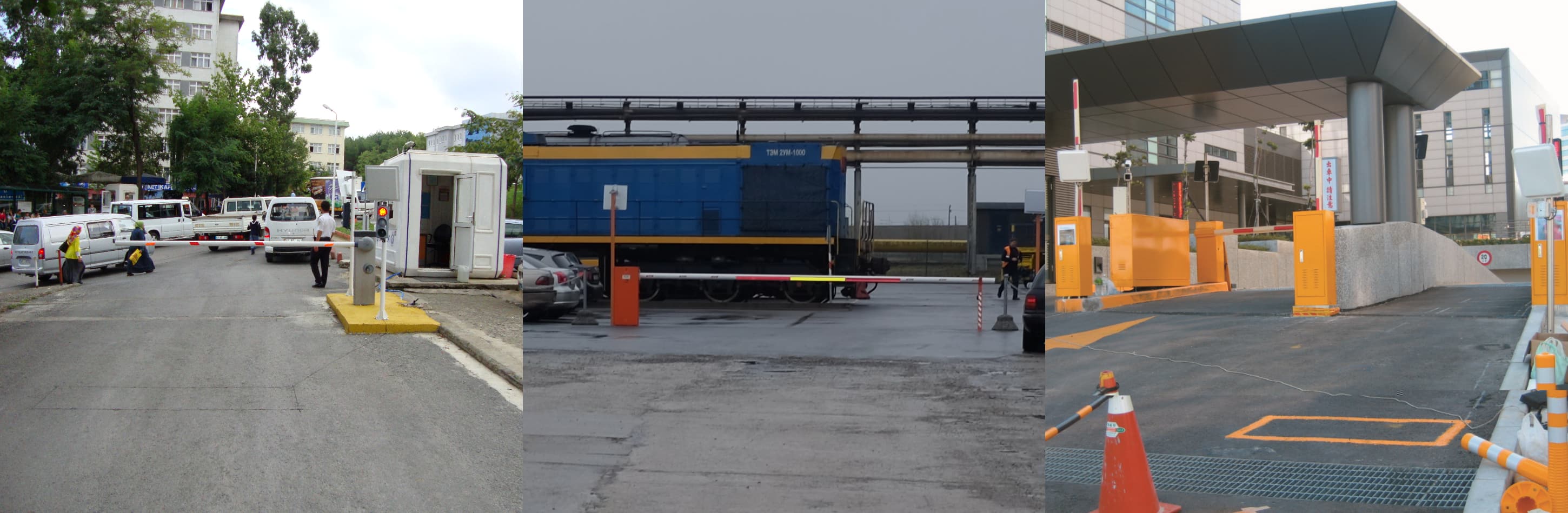

1. Intelligent traffic management such as ETC, customs clearance, parking lot, and automatic weighing
2. Logistics such as container management, pallet management, and asset tracking
3. Ticket business and access control
Pakistan Safe City Project
Auto Park All over The World
