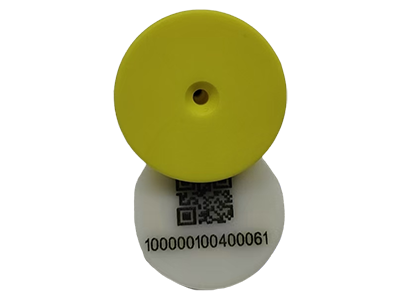

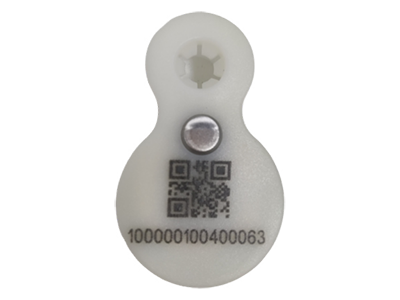

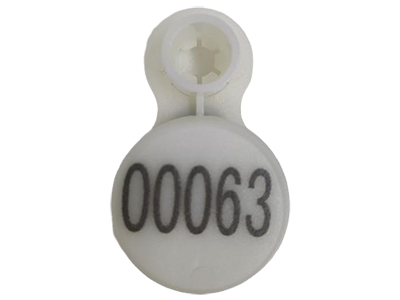

Biochip Ear Tag
Model NO：
ZR3658
Key Features The ZR3658 (Without Tag Plate) is a biochip ear tag with built-in wireless communication functionality. It integrates a high-precision temperature sensor and a multi-axis high-precision motion sensor. When worn on the back of a cow's ear, it can real-time monitor the cow's ear temperature and movement status. Collected data and analyzed conditions during the cow's breeding process are wirelessly and real-time uploaded via the IoT AI Box.
Supports cow temperature detection
Supports cow movement detection
Supports AI health early warning analysis
Supports cow death identification
Parameters Product Physical Characteristics
Material | ABS + TPU |
Color | White |
Product Dimensions | 28*46*13mm |
Weight | 8g |
Wearing Method | Ear Piercing |
2.45G RF Characteristics
Signal Modulation Mode | GFSK |
Communication Rate | 1Mbit/s |
Operating Frequency | 2.45 GHz Band |
Data Collection Frequency | 2s/time |
Output Power | 7dbm |
Communication Distance | 300m (Standard Reader, Open Line of Sight) |
Temperature Measurement Chip
Signal Modulation Mode | GFSK |
Communication Rate | 1Mbit/s |
Operating Frequency | 2.45 GHz Band |
Data Collection Frequency | 2s/time |
Output Power | 7dbm |
Communication Distance | 300m (Standard Reader, Open Line of Sight) |
Motion Detection Chip
Motion Direction | X, Y, Z Three Axes |
Measurement Range | ±2g |
Accuracy | ±8mg |
Sampling Frequency | 10Hz |
Electrical Performance
Static Current | <10uA |
Peak Current | 20mA |
Service Life | 1.5 Years |
Environmental Characteristics
Operating Temperature | -30~45℃ |
Storage Temperature | Room Temperature |

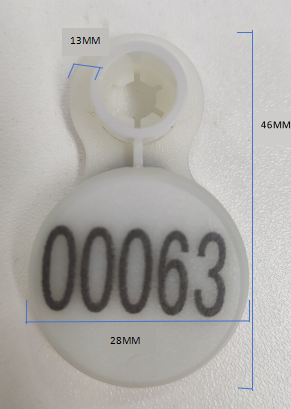

Structural Dimensions

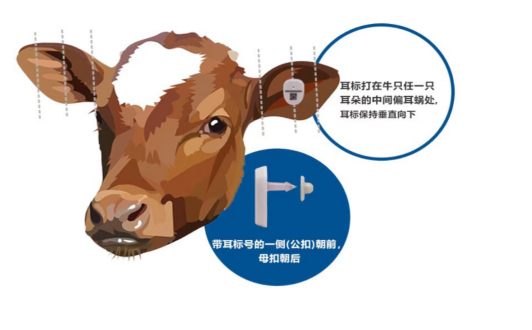

Ear Tag Installation Position Diagram
