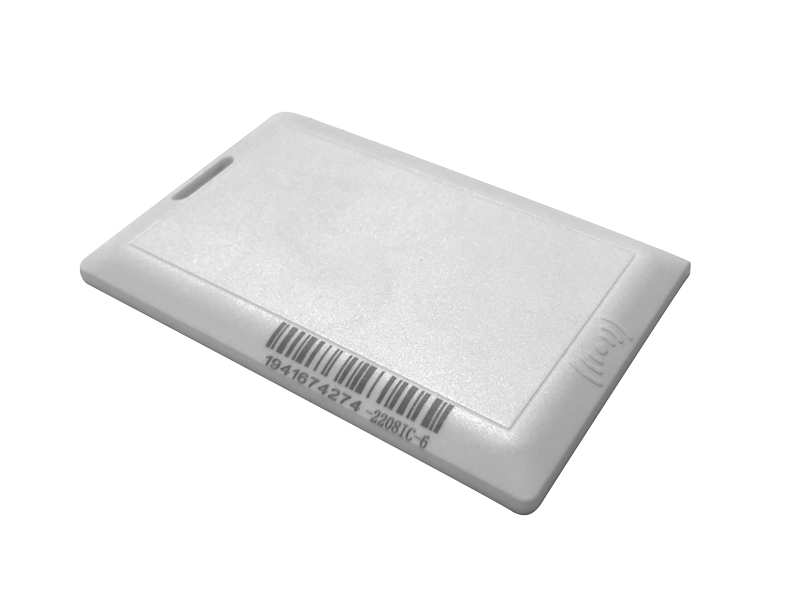

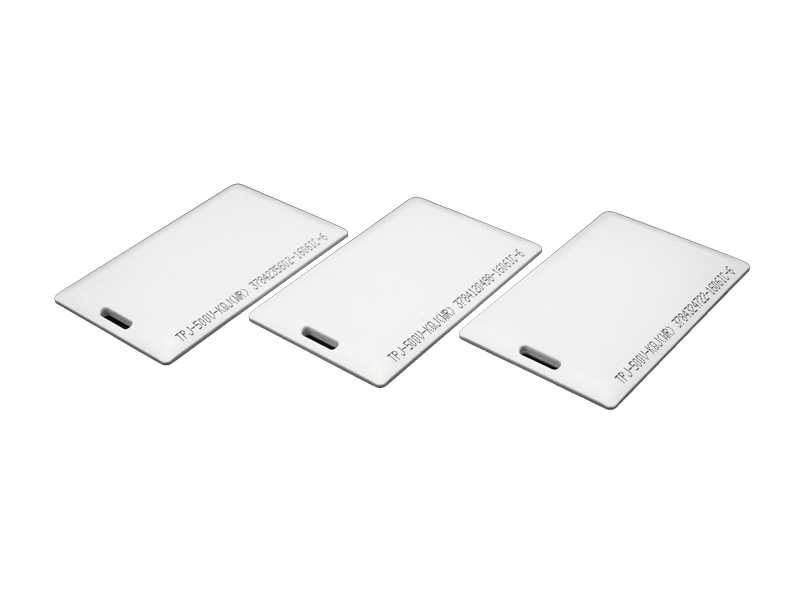

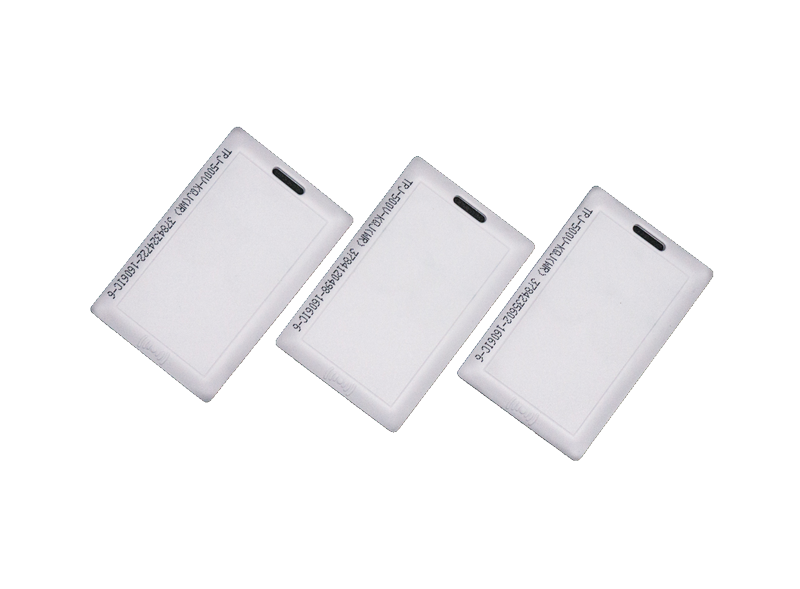

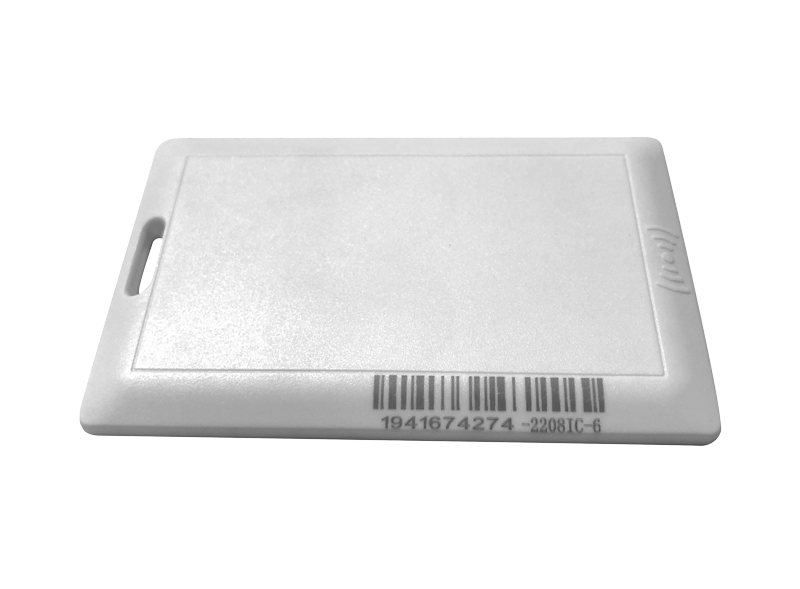

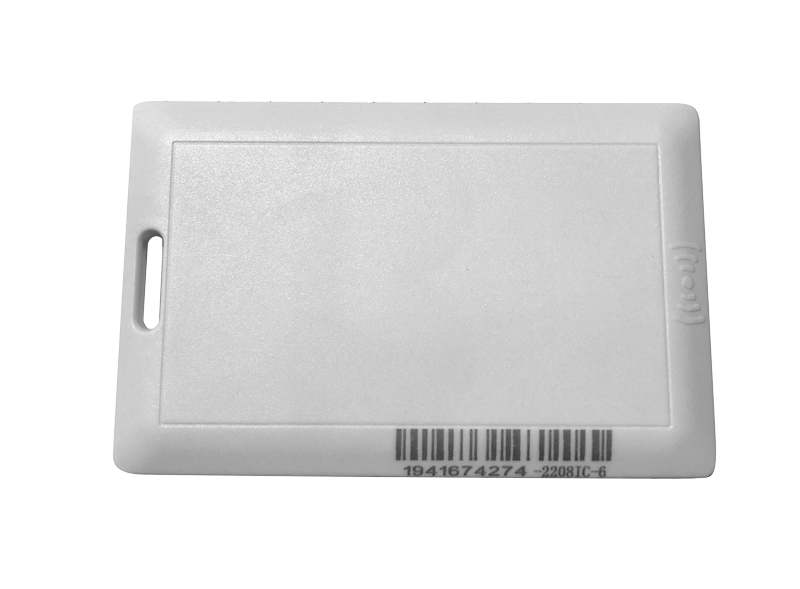

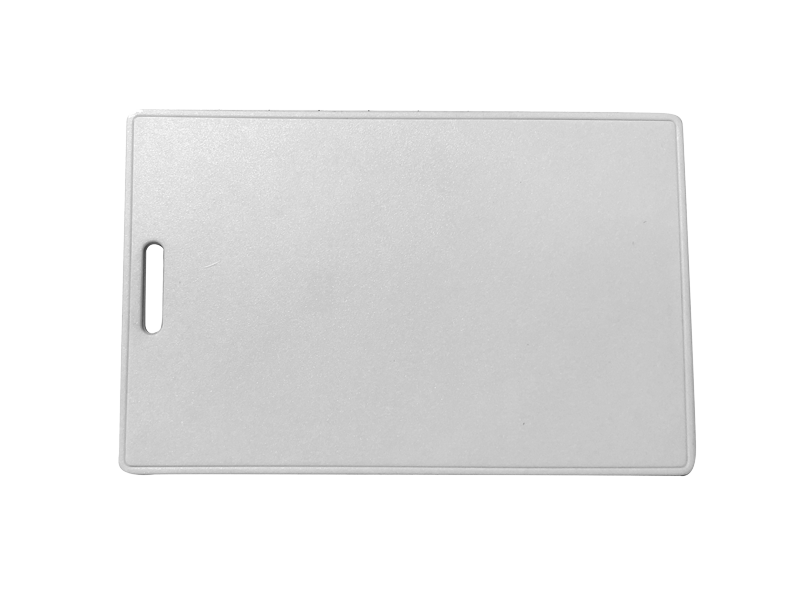

2.4G Active Tag
Model NO.：
HX607
Key Features
Suitable to adopt fixed frequency working mode, with powerful anti-jamming ability;
Effective reading range up to 80m (depend on reader and antenna, software configurable);
Super wide working band design, conforming to relevant industry rules and also flexible in application development;
Multi-Tag reading at the same time (more than 100pcs per second), no limitation or interference by tag quantity in the reading range.
Ultra-low power consumption，average working current<10uA
Hybrid design 2.4G + 13.56MHz, 13.56Mhz effective reading rang >3cm (125KHz optional)
Typical application are school students attendance, employee tracking, vehicle tracking etc.
Parameters
Model No | HX607 |
Type | 2.4G Card type (Beacon type) |
Inductive mode | Initiative transmit, transmit every second |
Material | ABS, heat resistant ,White color |
Dimension | 86*55*5.5mm |
Battery | battery life up to 3 years |
IP Grade | IP67 |
Installation | Carry on |
Signal modulation | GFSK |
Communication speed | 1Mbit/s |
Operation frequency | 2.44GHz |
Output power | 0dbm |
Average current | <7uA |
Battery model | CR2032 |
Battery capacity | 220mA |
Operating temperature | -20℃~+60℃ |
Storage temperature | -30℃~+65℃ |
Operating humidity | <85% |
13.56MHz Features: | |
Memory | 8Kbit |
Protocol | ISO14443A |
Communication Speed | 106kbit/s |
Certifications | FCC and CE |
