How to achieve accurate vehicle tracking with vehicle-mounted RFID readers?

With the rapid development of intelligent transportation and fleet management, vehicle-mounted RFID readers, as a key component of vehicle identification and positioning technology, are being widely used in logistics, smart parking, highway toll collection, and fleet dispatch systems. Compared to traditional GPS positioning or manual management methods, RFID technology offers advantages such as contactless, high-speed identification, strong anti-interference capabilities, and accurate data, providing businesses with a more efficient vehicle tracking and management experience. So, how do vehicle-mounted RFID readers achieve accurate vehicle tracking? This article will provide an in-depth analysis of the technical principles, system architecture, application scenarios, and methods for improving accuracy.

1. Working Principle of a Vehicle-Mounted RFID Reader

A vehicle-mounted RFID reader is a radio frequency identification device installed on a vehicle, primarily responsible for reading or writing data from RFID tags. Its core operating principle is as follows:

Signal Transmission: The RFID reader transmits a radio frequency signal of a specific frequency through its antenna.

Tag Response: When an object with an RFID tag enters the read range, the tag is activated and transmits stored identification information (such as vehicle ID, cargo number, etc.) to the reader. Data Processing: After receiving the signal, the reader converts it into digital information and transmits it to the backend system or onboard control unit.

System Recording and Tracking: The backend performs database comparison to identify the vehicle, monitor its driving status, and track its location in real time.

This contactless identification method enables dynamic identification and information exchange while the vehicle is in motion, significantly improving tracking accuracy and efficiency.

2. Overall Architecture of the RFID Tracking System

To achieve accurate vehicle tracking, an onboard reader alone is not enough; it requires coordination with multiple system modules. A complete RFID vehicle tracking system typically includes the following components:

Vehicle-mounted RFID reader: Installed on the front of the vehicle or inside the cockpit, it reads information from external RFID tags.

RFID electronic tags (tags): They can passively or actively transmit signals and uniquely identify vehicles or cargo.

Fixed RFID reader/writer: Installed at entrances and exits, toll booths, warehouse entrances, and other locations, it reads the tags of passing vehicles.

Wireless communication module: Used for data synchronization between the onboard device and the backend server. Vehicle Tracking Management Platform: Through a data visualization system, it enables functions such as vehicle status display, route playback, and abnormality alarms.

This system interconnects the "vehicle, road, and platform" network, building a real-time, efficient vehicle data network.

3. Implementation Mechanism for Precise Tracking Using Vehicle-Mounted RFID Readers

3.1 Unique Identity Identification Mechanism

Each vehicle-mounted RFID reader is assigned a unique ID number. The vehicle or cargo is also affixed with a uniquely coded RFID tag. When the reader detects a signal, the system matches and records it based on the corresponding ID, thus achieving integrated "vehicle-object-personnel" tracking.

3.2 Real-Time Data Collection and Upload

Vehicle-mounted RFID readers can upload read data in real time via 4G/5G communication modules. The backend system can instantly update the vehicle's location and status, creating a continuous driving trajectory.

3.3 Multi-Point Identification and Route Restoration

Multiple fixed RFID base stations are deployed on urban roads or campuses. Each time a vehicle passes an identification point, the time, location, and status are automatically recorded. By comparing these data points, the system automatically generates a driving path, enabling highly accurate vehicle tracking.

3.4 Multi-Source Data Fusion Combining Sensors and GPS

In scenarios requiring high precision, RFID readers are often used in conjunction with GPS positioning modules, inertial navigation systems (INS), or speed sensors. RFID provides vehicle identity and node identification, while GPS provides global positioning. The combination of these two allows not only identifying the vehicle but also determining its location, time, and route, significantly improving tracking accuracy.

4. Precision Tracking Performance of On-Vehicle RFID in Different Application Scenarios

4.1 Smart Logistics Fleet Management

In logistics and transportation, vehicle-mounted RFID readers can help companies implement automated vehicle entry and exit identification, cargo binding tracking, and route analysis. For example, when a freight vehicle enters a warehouse, the RFID reader automatically identifies the vehicle and cargo tags. The system instantly confirms loading information and updates it to the cloud, enabling intelligent monitoring without human intervention throughout the entire process.

4.2 Highway Toll Collection and Traffic Control

RFID reading technology has been widely used in highway ETC systems. Vehicle-mounted RFID readers interact with fixed readers at toll booths to automatically deduct tolls and record driving history. Compared to traditional manual toll collection methods, RFID systems can accurately identify vehicles even at high speeds, with a very low error rate.

4.3 Smart Parking and Access Control Management

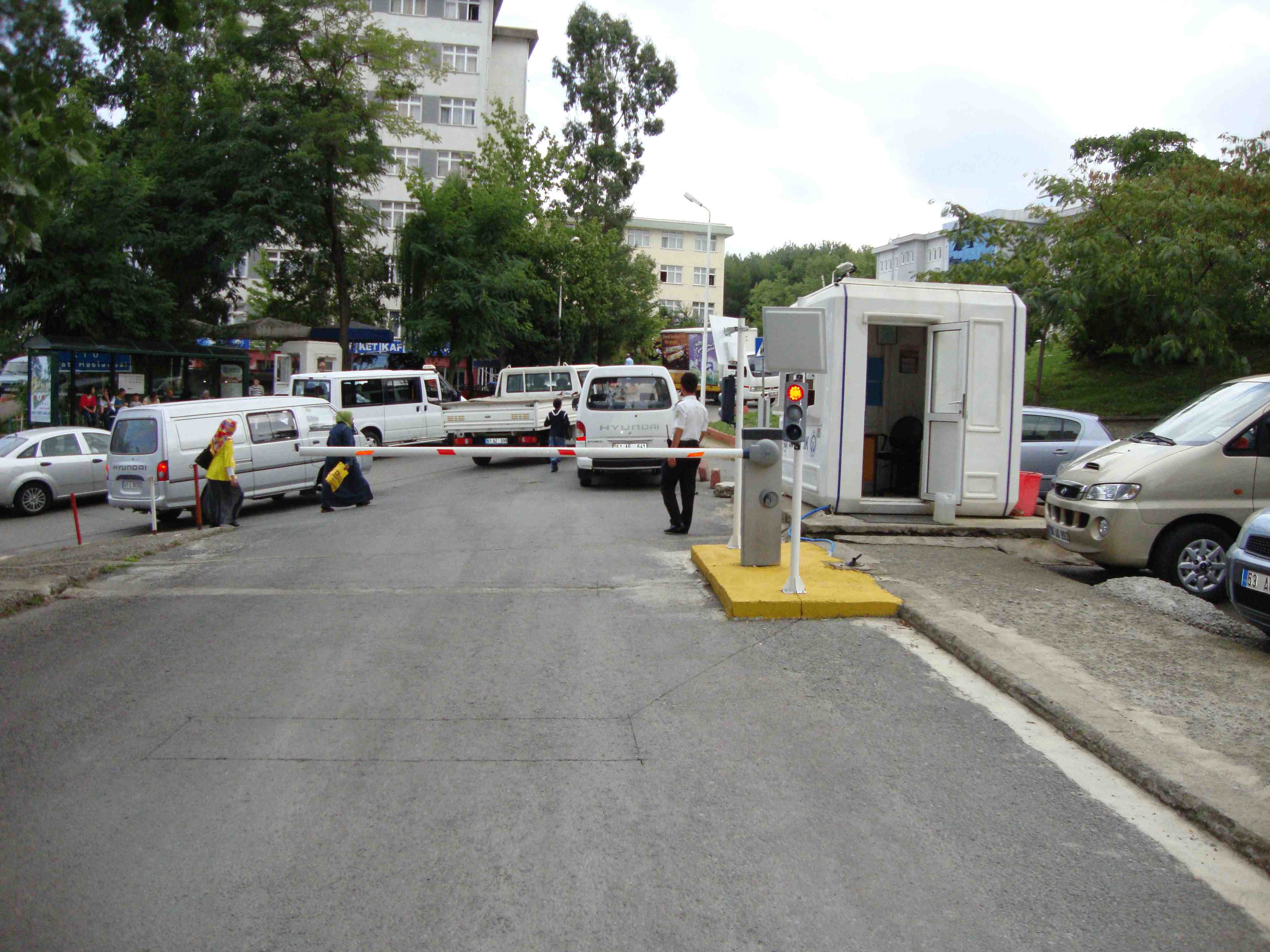

In business parks or residential communities, vehicle entry and exit are often identified using RFID. Vehicle-mounted readers can automatically read access control tags, enabling unmanned management where "vehicles are identified upon arrival and the gate automatically raises." This not only improves traffic efficiency but also records vehicle entry and exit times for easy tracking.

4.4 Urban Bus and Taxi Management

Urban transportation departments can implement vehicle dispatching, driving statistics, and abnormality monitoring by installing vehicle-mounted RFID readers on buses and taxis. When vehicles pass roadside base stations, the system records the license plate number, route number, and time information, enabling precise public transportation monitoring.

5. Key Factors Affecting In-Vehicle RFID Reading Accuracy

Although RFID technology is stable and reliable, in actual applications, many factors still affect recognition accuracy:

Environmental interference: Metal structures, rainy or snowy weather, or complex electromagnetic environments may cause signal reflection or attenuation.

Antenna mounting angle: If the reader antenna is not aligned with the recognition area, uneven signal coverage will result.

Tag performance differences: Tags of different brands or materials have different sensitivity, affecting the recognition range.

Excessive speed: When traveling at high speeds, the reading window is shortened, which may result in missed reads.

Therefore, in actual deployment, recognition accuracy should be improved through appropriate antenna placement, signal power optimization, and the selection of high-performance tags.

6. Optimization Strategies for Improving Vehicle Tracking Accuracy

UHF RFID technology: Extends recognition range and provides faster response speeds, meeting dynamic tracking requirements.

Multi-antenna collaborative reading: Arranging antennas at multiple angles reduces blind spots and improves overall recognition coverage.

Intelligent signal calibration algorithm: Utilizes software algorithms to automatically adjust transmit power to avoid signal interference. Data fusion and cloud computing analysis: Combining GPS and cloud database analysis enables more accurate trajectory reconstruction and anomaly detection.

Regular maintenance and firmware upgrades: Ensure stable reader operation and prevent identification accuracy from being affected by aging or communication delays.

7. Conclusion: Vehicle-mounted RFID Technology Makes Vehicle Tracking Smarter and More Reliable

The emergence of vehicle-mounted RFID readers has enabled vehicle tracking to move beyond traditional manual registration and GPS positioning to a more intelligent and sophisticated level. They not only identify vehicles but also enable continuous and accurate data collection in complex environments, providing powerful information support for industries such as smart transportation, smart warehousing, urban management, and logistics.

In the future, with the further development of the Internet of Things (IoT), 5G communications, and artificial intelligence technologies, vehicle-mounted RFID readers will no longer be mere "identification tools" but will evolve into intelligent data nodes, assuming multiple tasks such as vehicle status awareness, route optimization, and energy consumption analysis. It is foreseeable that vehicle-mounted RFID technology will become an indispensable core component in building a smart transportation ecosystem.

Marktrace RFID, a professional manufacturer of vehicle-mounted RFID readers, has consistently focused on the innovative research and development of intelligent identification and wireless radio frequency technologies. Our products are used in smart transportation, fleet management, warehousing and logistics, smart parks, and other fields. With stable performance, excellent recognition accuracy, and comprehensive technical support, Marktrace RFID helps customers achieve full-process visual management and efficient tracking of vehicles, driving the transformation of traditional transportation management towards digital and intelligent management.
